Soap Refiner Plodder Industrial Soap Plodder Machine
High performance refining and noodling machine used in the soap finishing line to improve the texture, consistency and production quality
High Performance Refining For A Superior Quality Soap
The soap refining plodder receives soap, which has been fully mixed and amalgamated with colour, perfume and other additives directly from the bottom discharge door of the mixer, into the in-feed hopper of the plodder.
Positioned as the second machine in the soap finishing line, the soap refiner plodder plays a crucial role in improving the texture, consistency, and overall quality of the final soap bar.
The Refining Process
The operational stages through which the soap refiner plodder compresses, filters, and extrudes soap mass into uniform noodles.
The material from the mixer is directly discharged into the in-feed of the refiner where the rotating screw compresses and homogenizes the soap mass.
The material then passes through filter screens to remove impurities and hard particles.

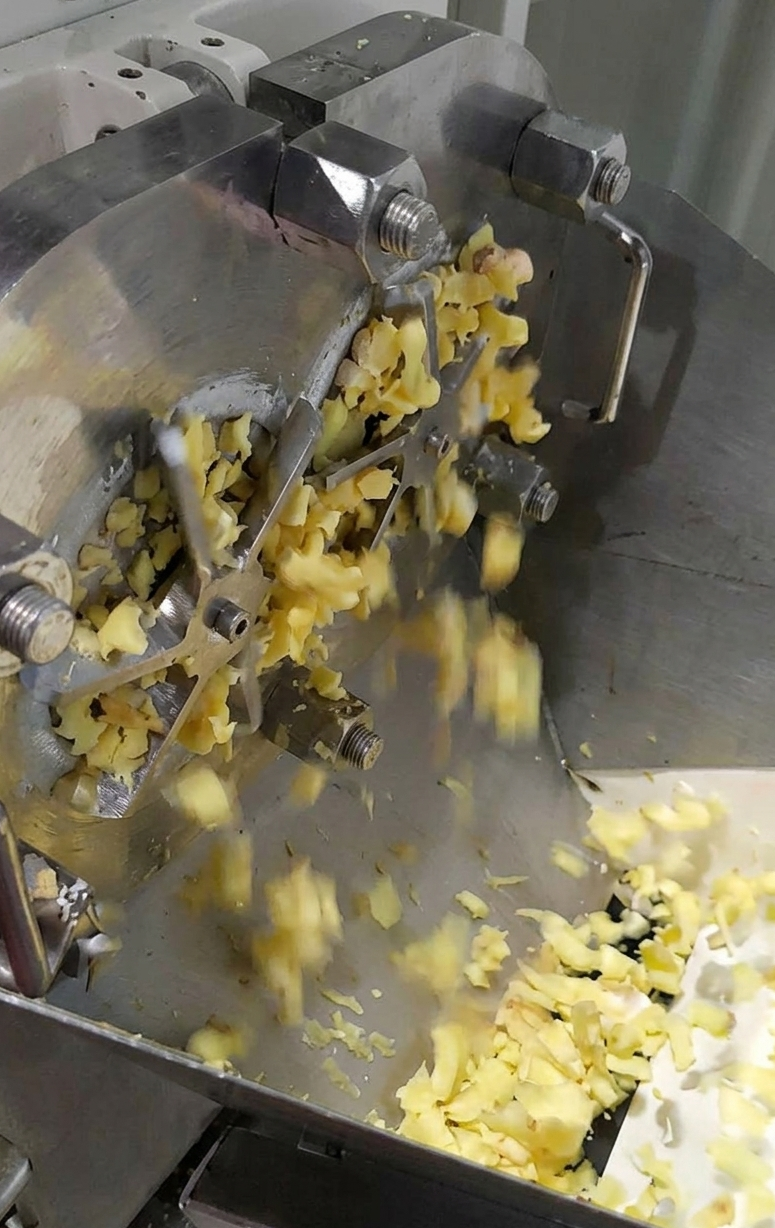

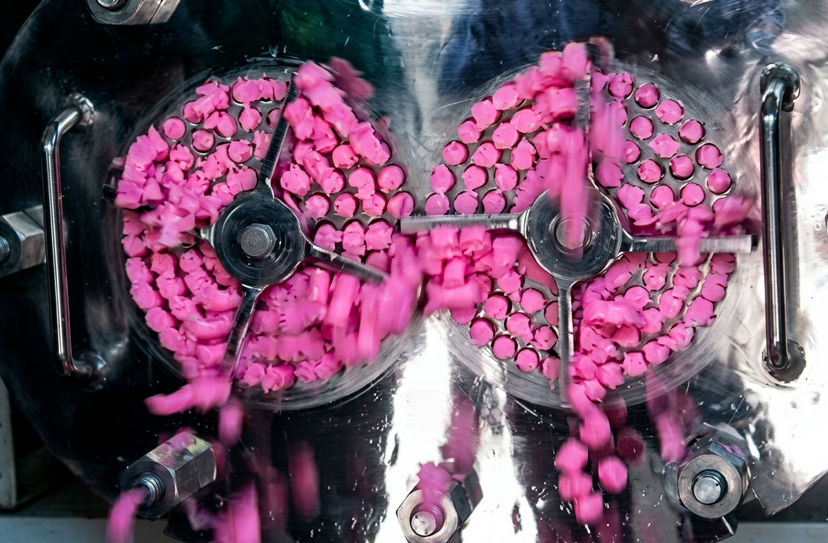

The refined soap is then extruded through a stainless steel noodling plate, producing uniform refined noodles.
These refined noodles are then passed to the Triple Roll Mill for further refining and texture improvement.
Why Refining Is Important
Eliminates impurities and hard particles
Creates uniform homogenous soap mass
Improves crystalline structure & solubility
Enhances foam generation
Creates smooth premium soap bars

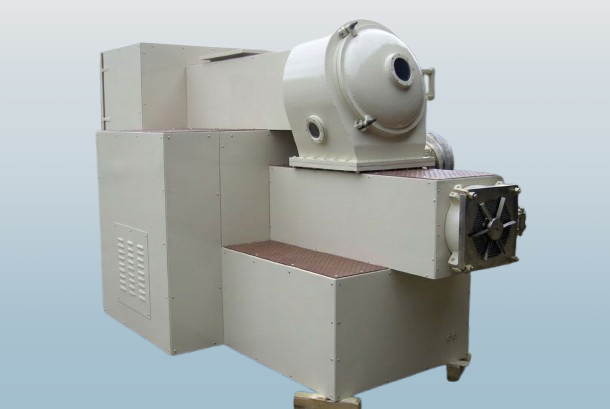

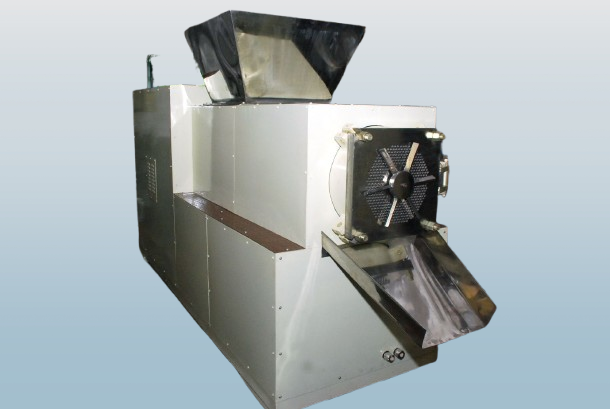

Machine Overview
The Brit Soap Refiner Plodder is a heavy-duty soap refining machine designed for continuous industrial production. All soap-contact components are manufactured from AISI 304 stainless steel to ensure corrosion resistance, hygiene, and long service life.
The barrels are built in AISI 304 stainless steel, with cooling jackets to regulate operating temperatures during continuous production, while the structural frame is fabricated from industrial-grade mild steel for strength and operational stability.

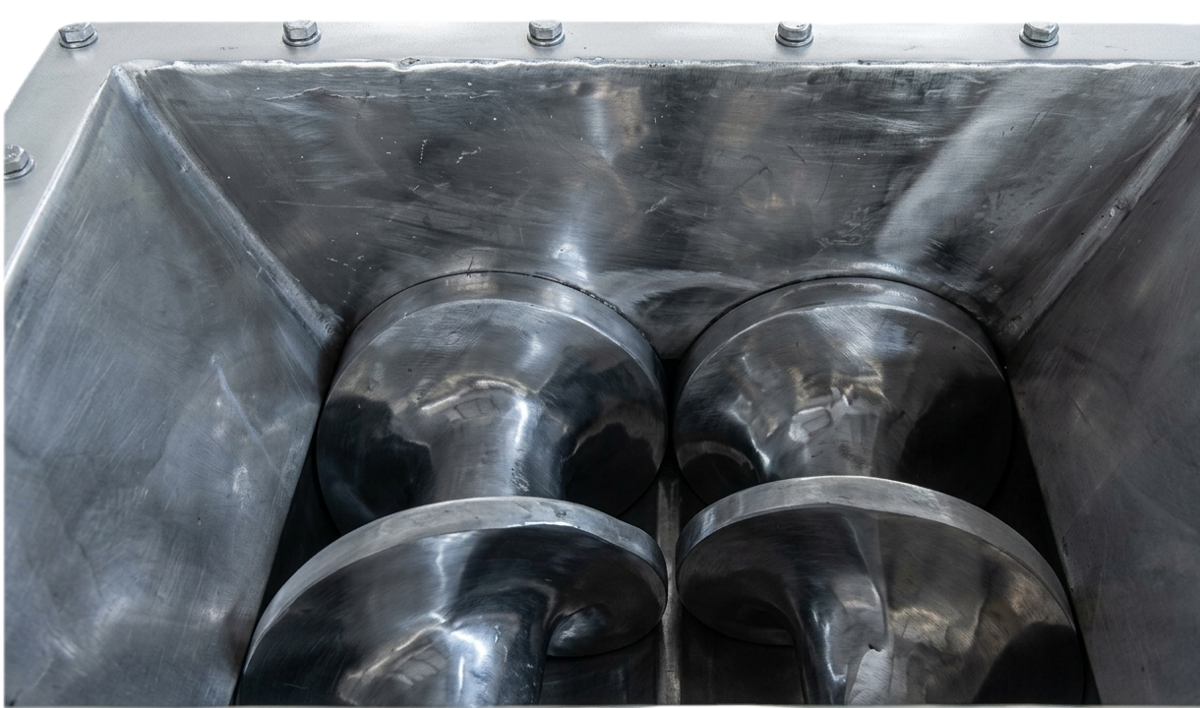

The refining screws are cast in Aluminium Silicon (LM6) alloy, polished and machined to maintain tight tolerances between the screw and barrel, enabling efficient compression and refining of the soap mass. An optimized length-to-diameter ratio of 4.5 further enhances material flow and extrusion performance.
Built with robust engineering, precision manufacturing, and high-grade materials, the Brit Soap industrial soap refiner plodder delivers reliable performance and consistent product quality across modern soap manufacturing lines.
Available Configurations
Single Worm Refiners
Suitable for standard refining requirements with efficient throughput
- •Single Worm Simplex Refiner
- •Single Worm Duplex Refiner

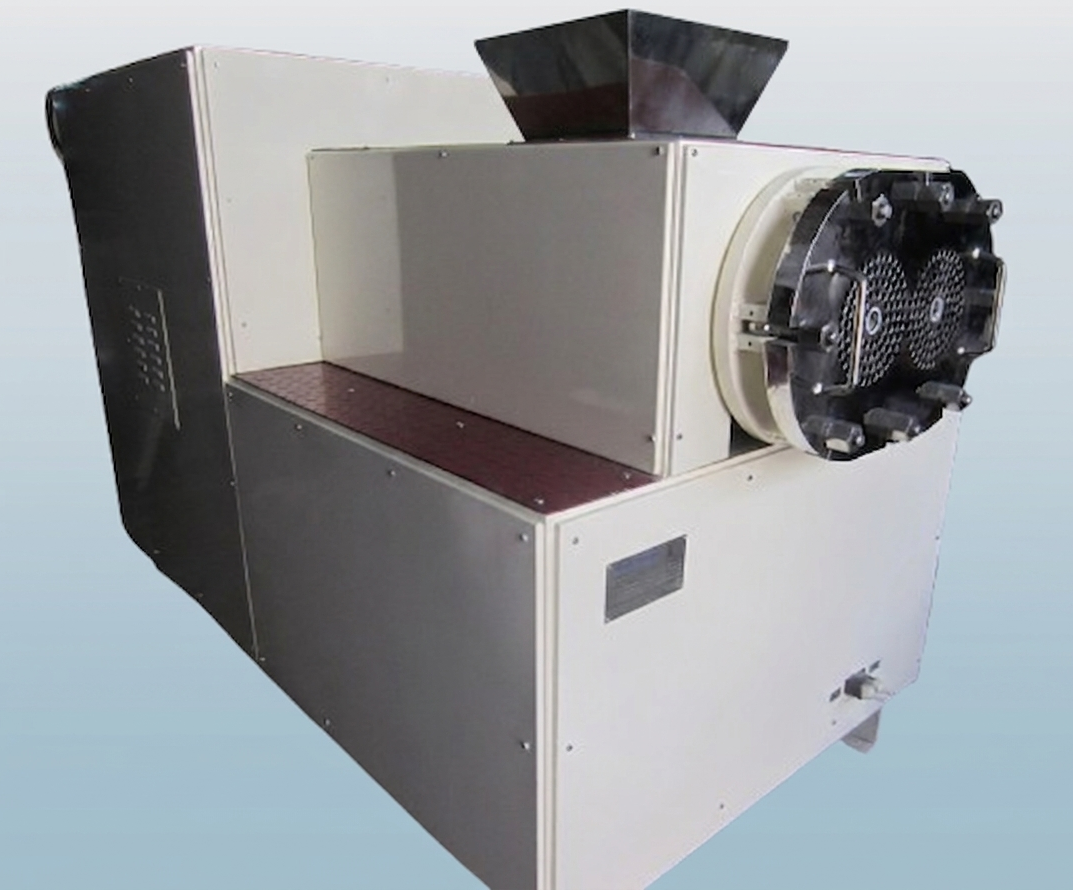

Twin Worm Refiners
Provides enhanced refining action and improved material processing for higher production demands
- •Twin Worm Simplex Refiner
- •Twin Worm Duplex Refiner
Application In Production
- Uniform billet formation
- Toilet soap production
- Laundry soap production
- Syndet soap applications
- Consistent downstream processing
Designed for continuous soap refining and extrusion before final finishing processes.
Capacity Range
The Brit Soap soap refining machines are available in a wide range of production capacities to suit different manufacturing scales.
100 kgs/hr
250 kgs/hr
500 kgs/hr
1 ton/hr
2 tons/hr
3 tons/hr
4 tons/hr
Engineered For Efficiency. Built For Reliability
Speak with our engineers to discuss your production requirements and identify the right capacity, configuration, and customization for your plant.
