Saponification Jet | Instant Soap Making System with Venturi Technology
High-efficiency instant saponification system using steam-driven venturi technology for continuous soap production.
Steam-Powered Saponification Jet for Continuous & Instant Soap Processing

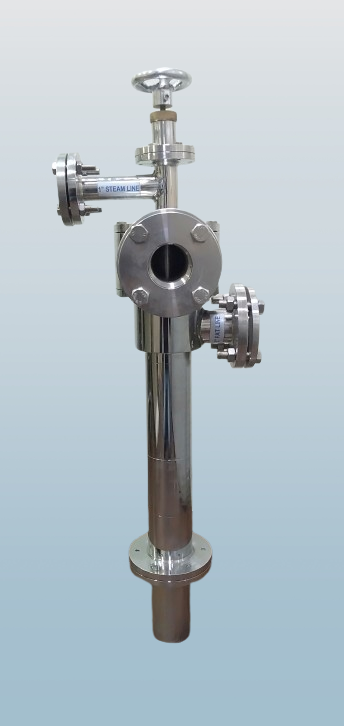

The Saponification Jet is an advanced, no-moving-parts system designed for instant soap production using steam energy. Utilizing venturi vacuum technology, it enables rapid mixing of caustic liquor and oils, delivering up to 90% reacted neat soap directly from the unit. Ideal for high-capacity, continuous soap manufacturing lines.
Saponification Jet | Instant Soap Making System with Venturi Technology
The Saponification Jet is a highly efficient instant saponification device used in modern industrial soap manufacturing, designed to operate without any moving parts. It utilizes motive steam as the primary energy source, ensuring low maintenance and reliable performance.
The system requires only 100 kg of steam per tonne of soap, making it an energy efficient solution for continuous soap production. A single jet unit can be adjusted to handle soap output capacities ranging from 1 to 10 tonnes per hour, offering flexibility across different plant scales.
The jet operates by passing 5 bar motive steam through an internal venturi, creating a strong vacuum. This vacuum enables precise and controlled suction of raw materials. The venturi steam jet is equipped with a needle valve, allowing operators to regulate flow rate, suction volume, and overall production output.
Concentric Barrel Design For:
- Caustic liquor (alkali)
- Oils / fatty materials

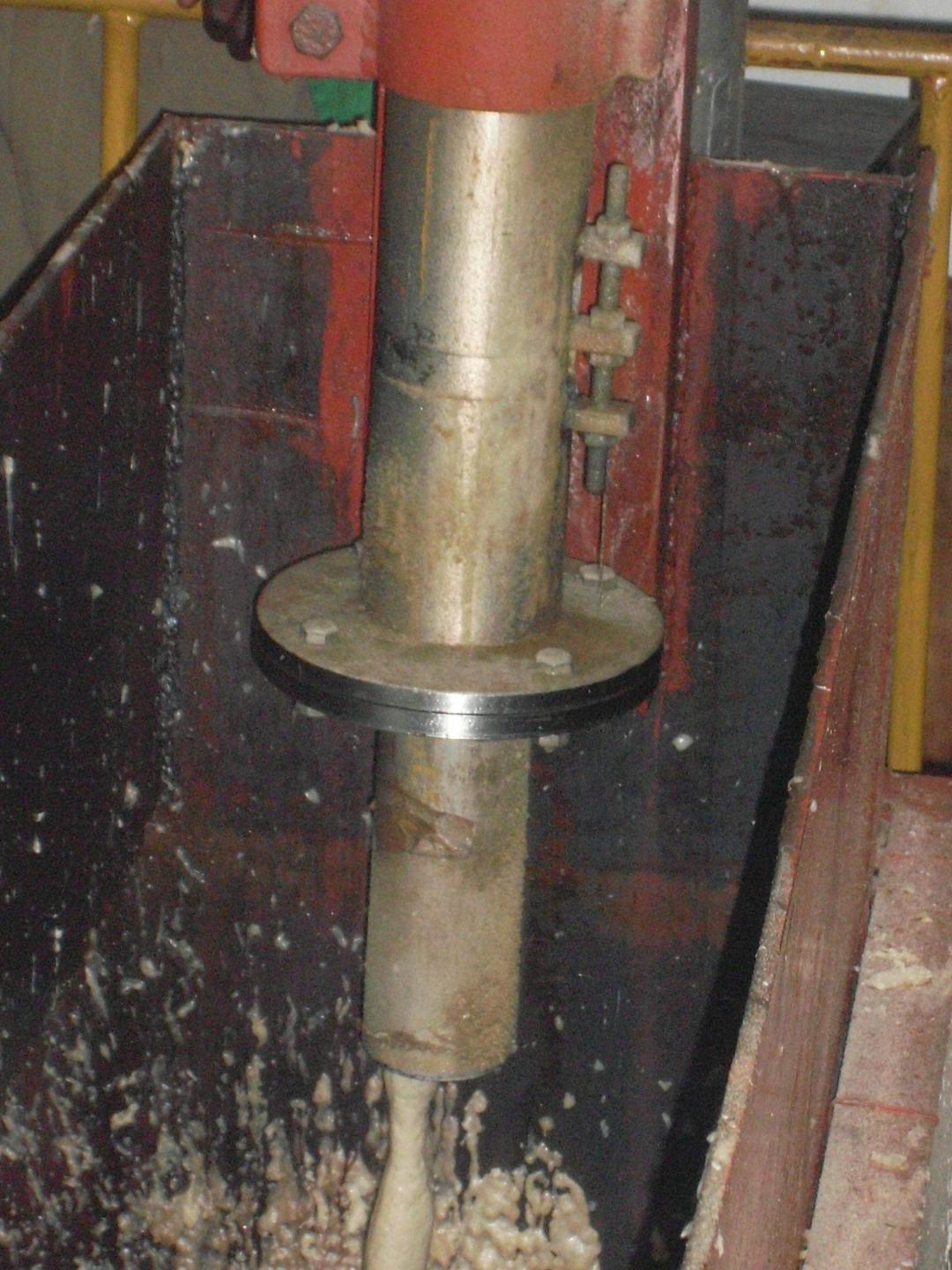

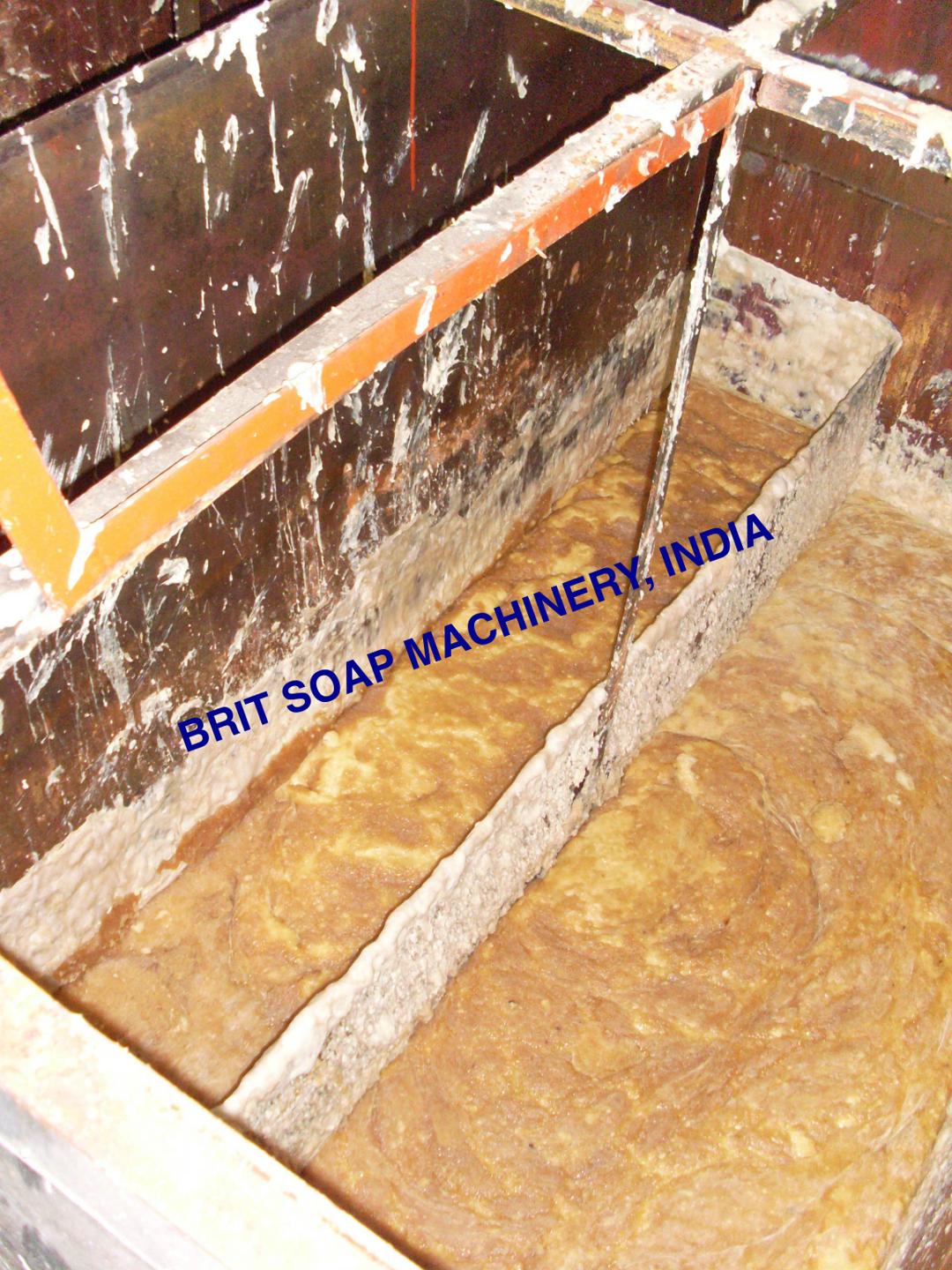

The venturi-induced vacuum draws both streams into the mixing zone, where they interact in the presence of steam. This results in instantaneous saponification, producing up to 90% reacted neat soap, which is discharged directly from the jet for further processing.

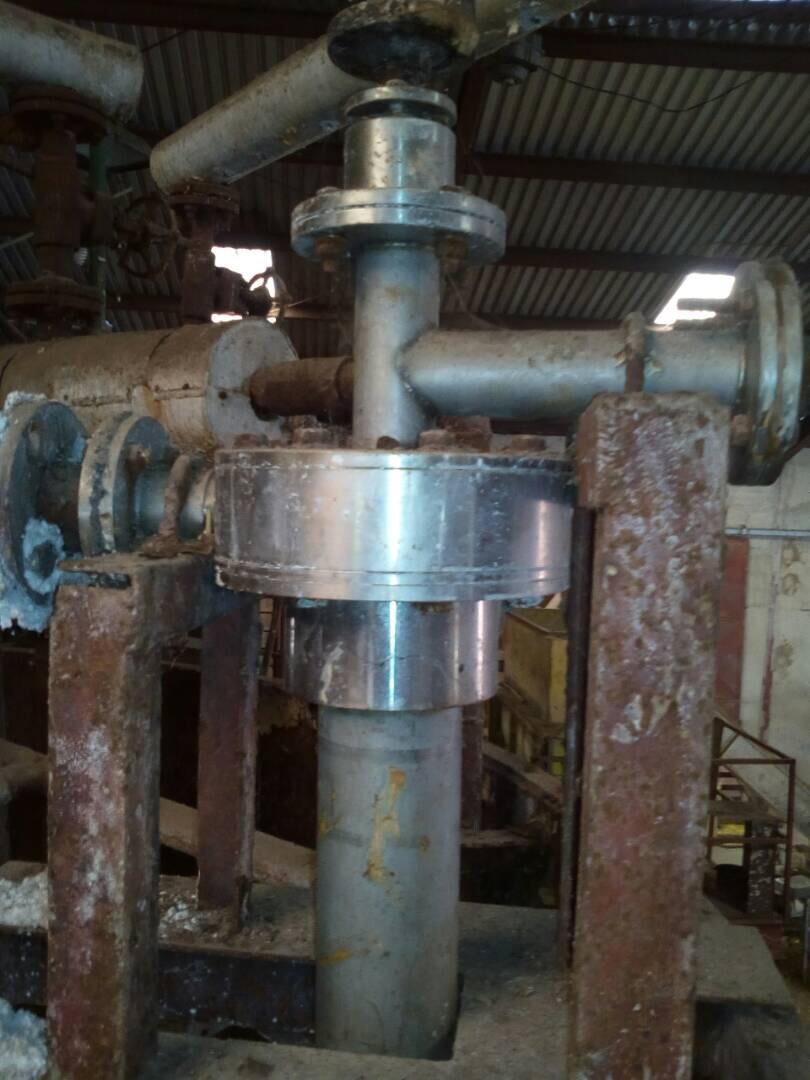

Engineering and Construction
Built for durability and operational efficiency, the Saponification Jet features a robust, no-moving-parts design that minimizes maintenance while ensuring consistent performance. Its precision-engineered components allow for controlled flow, efficient vacuum generation, and long-term reliability.
- No moving parts for minimal maintenance
- Operates using 5 bar motive steam
- Venturi jet system for vacuum generation
- Needle valve control for flow rate and output regulation
- Dual concentric barrel design for raw material feeding
- Engineered for continuous operation and durability
- Optimized for low steam consumption (100 kg/tonne of soap)
Uses and Benefits
The Saponification Jet enhances production efficiency by significantly reducing reaction time and energy consumption. Its streamlined design supports consistent output quality while lowering operational costs and maintenance requirements.
- Enables instant soap production, reducing processing time
- Improves energy efficiency with low steam consumption
- Ensures consistent and uniform saponification
- Reduces mechanical wear due to no moving parts
- Supports scalable production from 1 to 10 TPH
- Minimizes maintenance and operational downtime
- Delivers high conversion efficiency (up to 90% neat soap)
Engineered For Efficiency. Built For Reliability
Speak with our engineers to discuss your production requirements and identify the right capacity, configuration, and customization for your plant.
