AV Pneumatic Cutter | Automatic Vertical Cutter For Soap Bar Production
High-accuracy electro-pneumatic cutter designed to divide continuously extruded soap bars into uniform lengths with perfectly aligned vertical cuts.
High-Accuracy Electro-Pneumatic Cutting For Modern Soap Finishing Lines
The Brit Soap Automatic Vertical (AV) Pneumatic Cutter is a precision cutting machine designed to cut continuously extruded soap bars into uniform tablet lengths.
Installed directly after the Duplex Vacuum Plodder and before downstream processing, the machine receives the continuous soap billet from the extruder and divides it into accurately sized bars ready for stamping or packaging.
Using encoder-controlled cutting synchronization, the cutter moves at the same velocity as the soap bar during the cutting cycle, ensuring clean, distortion-free vertical cuts and precise bar length control.
The Cutting Process
The soap exits continuously from the plodder nose cone and moves directly onto the AV Cutter conveyor, aligned with the extruder outlet.

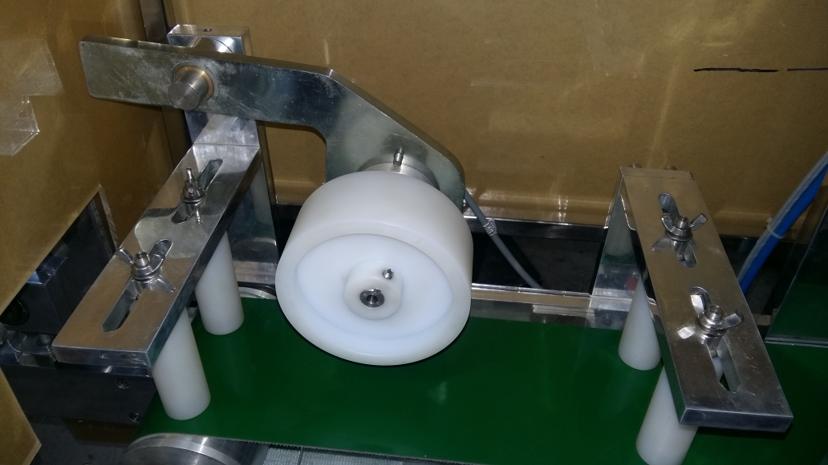

An encoder measures the linear speed and length in real time. Once the preset bar length is reached, the encoder sends a cutting signal.

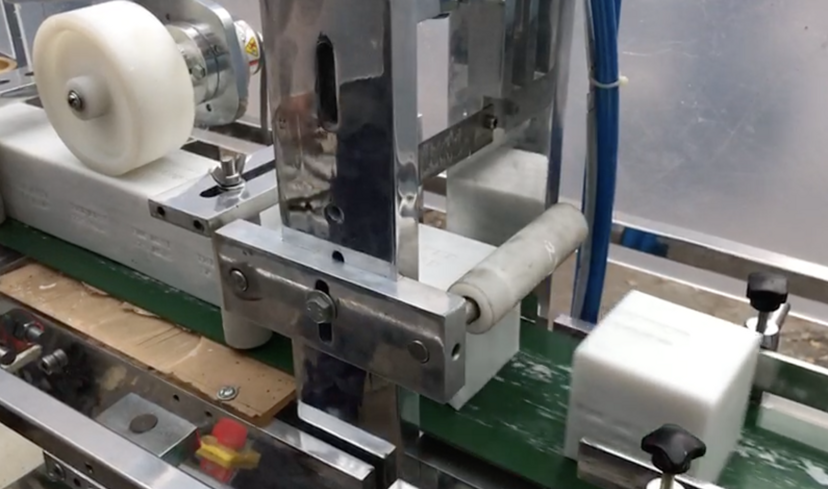

The pneumatically driven knife travels at the same velocity as the moving soap bar, ensuring a perfect vertical cut without distortion. The cut bars proceed further for stamping, or packaging operations
Why Is The AV Pneumatic Cutter A Significant Machine?
In continuous soap production, cutting accuracy is critical to final product quality. The machine’s synchronized cutting mechanism ensures clean, distortion-free edges, eliminating drag marks and uneven surfaces so every bar is perfectly prepared for downstream finishing.
Consistent soap bar length
Clean vertical cuts
Accurate branding alignment
Smooth Line Integration
Reduced product rejection and waste

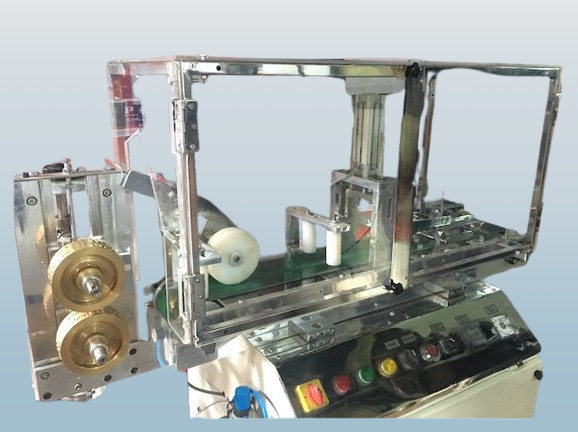

Machine Overview
The Brit Soap AV Pneumatic Cutter is designed for precision, durability, and seamless integration into modern soap finishing lines. Placed after the Duplex Vacuum Plodder, the machine’s compact design with an integrated conveyor enables smooth billet transfer from the plodder and easy installation in existing setups. The machine offers high operational flexibility with multiple cutting modes and real-time length adjustment, supported by an electronic encoder for accurate measurement. The electro-pneumatic cutting system delivers clean, consistent vertical cuts, while features like adjustable settings and mobility enhance usability across different production environments. An optional embossing assembly allows simultaneous branding and cutting, simplifying the process—especially for laundry soap production.
Key Features
Real-time adjustment of soap bar length without stoppage
Electronic encoder for precise length measurement
Electro-pneumatic vertical cutting for clean, accurate cuts
Adjustable cutting height for different bar sizes
Belt conveyor with variable speed control
Compact design with integrated conveyor for easy line integration
AISI 304 contact parts for durability and hygiene
Anti-vibration mounts for stable operation
Industrial mobility wheels with locking mechanism
Optional embossing assembly for branding
Configurations Of The Machine
Standard Cutting Configuration
- Designed for precise soap bar cutting
- Suitable for lines where branding is done later through stamping machines
- Ideal for toilet soap production

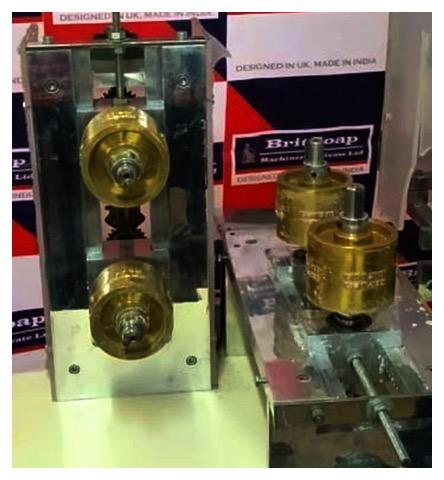

Embossing Roller Configuration

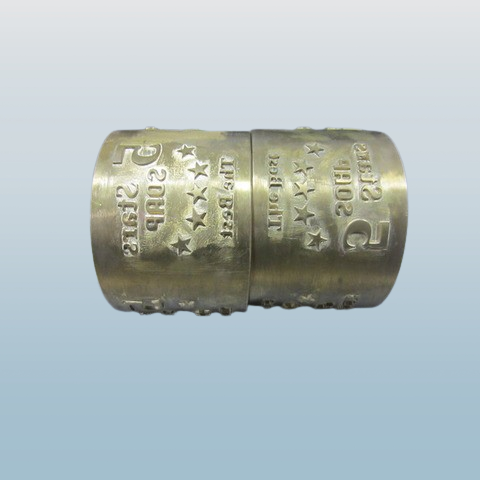

- Integrated embossing roller assembly
- Allows simultaneous branding and cutting

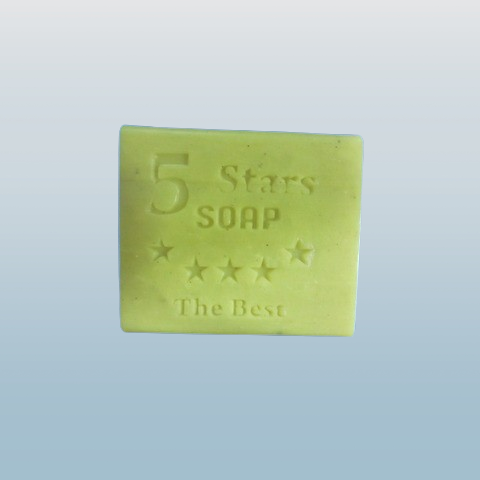

- Ensures accurate logo alignment on the soap bar
- Eliminates the need for a separate stamping process
Applications
The Brit Soap AV Pneumatic Cutter is designed for reliable performance across a wide range of soap production lines. Installed after the plodder, it divides the continuous soap billet into uniform bars with clean vertical cuts, ensuring consistency before downstream processes such as stamping or packaging. It is widely used for the production of toilet soaps, laundry soaps, and synthetic detergent bars.
