HSB Cutter | High Speed Rotary Soap Bar Cutting
High-speed cutting system designed for continuous soap bar production lines, delivering uniform bar length and efficient downstream processing.
Engineered For Reliable High-Capacity Soap Finishing Lines
The Brit Soap HSB Cutter is a high-speed rotary cutting machine designed for cutting toilet soaps, laundry soaps, detergent bars, and deodorising blocks extruded from the Duplex Vacuum Plodder.
Positioned directly after the plodder extruder, the machine receives the continuous soap bar and cuts it into bars of predefined length before the next stage of the finishing line.
Thanks to its precision rotary blade mechanism and advanced electronic control system, the HSB Cutter delivers clean, orthogonal cuts even at high production speeds, ensuring consistent bar dimensions and smooth downstream processing.
Soap Cutting processs

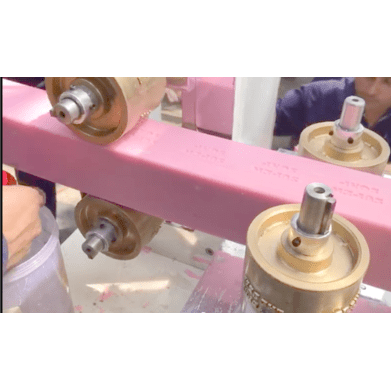

The soap billet exits continuously from the plodder nose cone and moves directly onto the HSB Cutter conveyor, aligned with the extruder outlet.

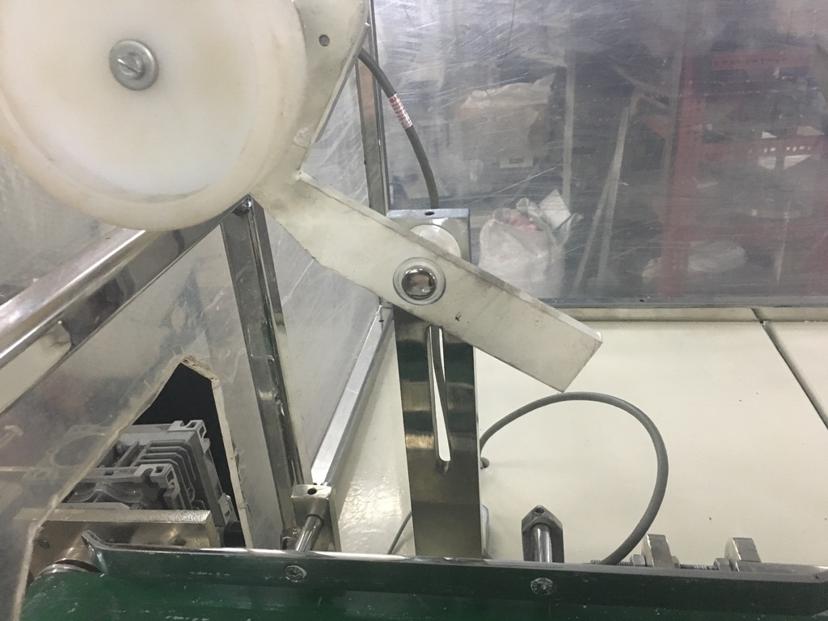

An encoder measures the billet speed and length in real time. Once the preset bar length is reached, the encoder sends a cutting signal.

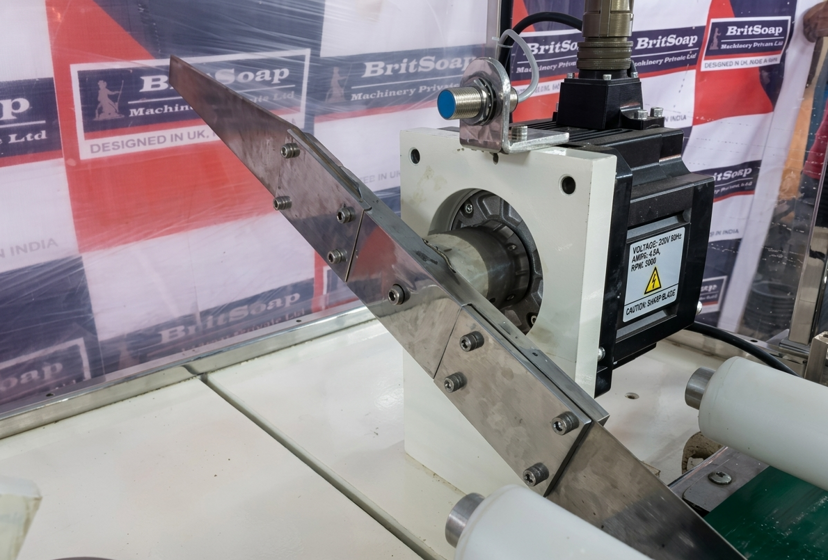

The rotary blade assembly, driven by a high-speed servo motor, rotates through the billet and produces a precise cut.
Why The HSB Cutter
In modern soap manufacturing, maintaining consistent bar dimensions at high production speeds is essential. Its robust design ensures continuous operation with minimal maintenance, making it suitable for industrial soap manufacturing environments.
Precise and repeatable cutting accuracy
Stable performance in high-capacity production lines
Smooth integration with automated finishing equipment
Reduced manual handling and improved production efficiency
Machine Overview
High-Speed Rotary Cutting For Industrial Soap Production

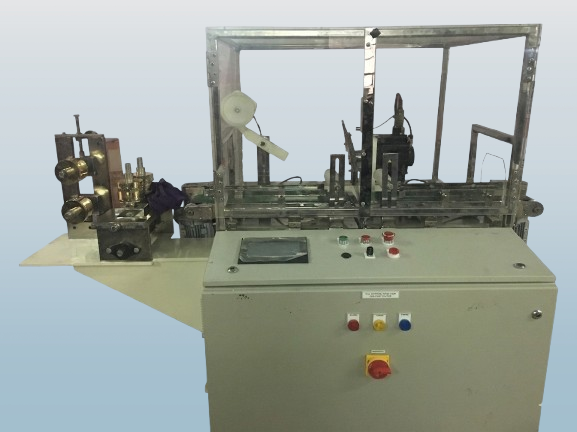

The HSB cutting unit consists of a high-speed rotary blade driven by a servo motor, specially designed to deliver clean and precise cuts at high throughput rates. The machine is built to be flexible and compact in design and deliver a high output. The cutting assembly, length detection unit, and electrical control panel are mounted on a robust base frame with wheels, enabling easy positioning and integration within the soap finishing line.A roller-driven encoder ensures accurate measurement of billet movement, allowing precise control of bar length during continuous extrusion. It is also integrated with advance electronic control system via a touchscreen PLC interface that allows the operator to:
Set cutting length (datum length)
Start or stop machine operation
Select operating modes
Monitor production parameters
Guides and cutting parameters can be adjusted to accommodate different bar sizes.
The machine offers dual operating modes
The HSB Cutter can be equipped with engraving or embossing rollers to imprint logos or brand names directly onto the extruded soap billet. This allows soap bars to be branded before cutting, eliminating the need for a separate stamping process for laundry soaps. For very large scale productions, a twin lane cutter is available with a minimum gap of 450mm.
Application
The HSB Cutter is suitable for cutting a wide range of extruded products. Its high-speed rotary cutting system ensures precise bar length and clean cuts, making it ideal for continuous soap finishing lines. The high speed rotary action makes it an ideal cutting machine for large scale soap production plants and is suitable for manufacturing of toilet soap bars, laundry soaps, detergent bars and syndet soaps.
